Woven Wire Mesh for Cabinet Decoration, Partitions and Facade

Woven wire mesh is designed with different shapes and sizes. These years woven wire mesh has been accepted by more and more merchants, customers and designers in the architectural decoration field. Depending on its different patterns, colors, materials and aperture sizes, woven wire mesh has become the mostly used in building decoration. This durable and flexible woven wire mesh can be used for large surface of architecture coverings. And some may combine with LED lights can create a great visual impact effect in the night and easily attract your sights. Furthermore, it is widely used as Partitions and Cabinet doors in residences, Screens for shopping halls, Isolation in hotels, Ceiling decoration in trade fair exhibition and retractable sun protection, etc.

An enlarge view of Woven wire mesh in copper color, and it is woven by three strand wire rope and copper rods.

WWD-1: Golden rope and rod woven mesh.

Specifications:

Product name: woven wire mesh.
Material: stainless steel 304, 316 or 316L, brass, aluminum, copper, aluminum alloy, etc.
Color: gold, silver, copper, gun-black, natural color, etc.
Shape: round, length, square, scale hole, hexagonal hole, plum blossom and so on.
Open area: 25% - 76%.
Weave type: plain weave, twill weave.
Diameter of iron bar: 0.5 mm - 4 mm.
Diameter of cable wire: 2 mm - 4 mm.
Rod diameter of cable metal mesh: 3 mm - 4 mm.
Weight: 6 kg/m² - 11.2 kg/m².
Thickness: 3 mm - 9.5 mm.

Note: Other colors, shapes and sizes are also available at your requests.

The front side of Woven wire mesh made of thick round wire.

WWD-2F: Compact woven wire mesh front side

Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.5 mm.
Warp pitch: 9.3 mm.
Weft diameter: 1.5 mm × 2 mm.
Weft pitch: 2.5 mm.
Weight: 11.6kg/m².

The back side of Woven wire mesh made of thick round wire.

WWD-2B: Compact woven wire mesh back side

Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.5 mm.
Warp pitch: 9.3 mm.
Weft diameter: 1.5 mm × 2 mm.
Weft pitch: 2.5 mm.
Weight: 11.6kg/m².

The front side of this sample is woven by half round steel wire.

WWD-3F: Half round woven wire mesh front side

Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.73 mm × 1 mm.
Warp pitch: 4.6 mm.
Weft diameter: 1.73 mm × 1 mm.
Weft pitch: 4.6 mm.
Weight: 3.66kg/m².

The back side of this sample is woven by flat steel wire.

WWD-3B: Half round woven wire mesh back side

Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.73 mm × 1 mm.
Warp pitch: 4.6 mm.
Weft diameter: 1.73 mm × 1 mm.
Weft pitch: 4.6 mm.
Weight: 3.66kg/m².

A piece of Woven wire mesh sample made of thick flat wire.

WWD-4: Thick flat woven wire mesh

Material: Stainless steel 304, 316, 316L.
Warp diameter: 3.4 mm × 1.1 mm.
Warp pitch: 6.6 mm.
Weft diameter: 3.4 mm × 1.1 mm.
Weft pitch: 6.6 mm.
Weight: 8.2kg/m².

WWD-5: Thin flat woven wire mesh

Material: Stainless steel 304, 316, 316L.
Warp diameter: 2.2 mm × 0.85 mm.
Warp pitch: 4.5 mm.
Weft diameter: 2.2 mm × 0.85 mm.
Weft pitch: 4.5 mm.
Weight: 5.1kg/m².

A piece of Woven wire mesh sample that is woven by double vertical wire.

WWD-6: Double vertical woven wire mesh

Material: Stainless 304, 316, 316L.
Warp diameter: 1.2 mm × 2.
Warp pitch: 17.5 mm.
Weft diameter: 2 mm.
Weft pitch: 6 mm.
Weight: 5.7kg/m².

The process craft of this sample is plain weave.

WWD-7: Embossed wire mesh

Material: Stainless 304, 316, 316L.
Warp diameter: 0.8 mm × 1.
Warp pitch: 2.5 mm.
Weft diameter: 1.2 mm.
Weft pitch: 5.3 mm.
Weft pitch: 6 mm.
Weight: 3.66kg/m².

WWD-8: Fine woven wire mesh

Material: Stainless 304, 316, 316L.
Warp diameter: 0.25 mm.
Warp pitch: 1.1 mm.
Weft diameter: 0.25 mm.
Weft pitch: 0.75 mm.
Weight: 0.73kg/m².

A piece of nickel wire drapery sample that made of nickel is held in one's hand.

WWD-9: Nickel woven wire mesh

Material: Nickel.
Warp diameter: 0.3 mm.
Warp pitch: 1.4 mm.
Weft diameter: 0.3 mm.
Weft pitch: 1.4 mm.
Weight: 0.65kg/m².

WWD-9: Stainless steel woven wire mesh

Material: Stainless steel 304.
Warp diameter: 0.3 mm.
Warp diameter: 0.55 mm.
Warp pitch: 1.7 mm.
Weft diameter: 0.55 mm.
Weight: 1.9kg/m².

This piece of Woven wire mesh sample is woven by brass.

WWD-11: Brass woven wire mesh

Material: Stainless steel 304.
Material: Brass.
Warp diameter: 1.6 mm.
Warp pitch: 12 mm.
Weft diameter: 1.6 mm.
Weight: 2.7kg/m².

This piece of Woven wire mesh sample is woven by copper rods and one strand stainless steel wire rope.

WWD-12: Copper cable mesh (one stainless steel cable)

Material: Stainless steel and copper.
Cable diameter: 1.75 × 1.
Cable pitch: 7.2 mm.
Rod diameter: 2.5 mm.
Rod pitch: 8.2 mm.
Weight: 6.85kg/m².

This piece of Woven wire mesh sample is woven by stainless steel rods and one strand stainless steel wire rope.

WWD-13: Stainless steel cable mesh (one stainless steel cable)

Material: Stainless steel 304, 316, 316L.
Cable diameter: 2.4 mm × 1.
Cable pitch: 6 mm.
Rod diameter: 3 mm.
Rod pitch: 6 mm.
Weight: 10.4kg/m².

This piece of Woven wire mesh sample is woven by thin stainless steel rods and one strand stainless steel wire rope.

WWD-14: Stainless steel cable mesh (thin rod with one stainless steel cable)

Material: Stainless steel 304, 316, 316L.
Cable diameter: 2.6 mm × 1.
Cable pitch: 6.8 mm.
Rod diameter: 2 mm.
Rod pitch: 7.5 mm.
Weight: 6.6kg/m².

This piece of Woven wire mesh sample is woven by stainless steel rods and three strands stainless steel wire ropes.

WWD-15: Stainless steel cable mesh (three stainless steel cables)

Material: Stainless steel 304, 316, 316L.
Cable diameter: 2.2 mm × 3.
Cable pitch: 80 mm.
Rod diameter: 3 mm.
Rod pitch: 10 mm.
Weight: 7kg/m².

This piece of Woven wire mesh sample is woven by stainless steel rods and four strands stainless steel wire ropes.

WWD-16: Stainless steel cable mesh (four stainless steel cables)

Material: Stainless steel 304, 316, 316L.
Cable diameter: 1 mm × 4.
Cable pitch: 36 mm.
Rod diameter: 2 mm.
Rod pitch: 4 mm.
Weight: 7kg/m².

This piece of Woven wire mesh sample is woven by stainless steel rods and three strands thin stainless steel wire rope.

WWD-17: Thin stainless steel cable mesh (thin rod with three thin stainless steel cables)

Material: Stainless steel 314, 316, 316L.
Cable diameter: 0.45 mm × 3 mm.
Cable pitch: 3.6 mm.
Rod diameter: 0.5 mm.
Rod pitch: 1.6 mm.
Weight: 1.67kg/m².

Features:

Strong, durable and flexible construction.
Certain protection and safe.
Never rust and long lasting.
Easy installation.
Low maintenance.
Unique texture effect.
Ventilation, light transmission and sound absorption.
modern design and attractive appearance.
Various sizes and colors.
Elegant, upscale and unique style
Fashion and versatility.

Applications:

Woven wire mesh is perfect for inner and outdoor ornamentation, especially for the three-dimensional decorative architecture, showing more elegant, upscale, simple and unique visual effects. It can be used as:

Wire mesh facades.
Architecture ceilings.
Metal draperies for walls partition.
Elevator cabins screen.
Exterior facades.
Column cladding.
Fencing and gates.
Furniture.
Decorative curtains.
Ventilation grilles.
Privacy ceiling panels.
Showcases.
Terrace and corridors.
High-grade internal and external decoration.

Shade screens.
Room divider or isolation screens.
Staircases isolation screen.
Floor covering fabrics.
Wall coverings.
Sunshades and canopies.
Balustrades.
Partition screens.
Infill panels.
Security places.
Store fixtures.
Acoustical panels.
Shutters.
Stair access.

So it has already become an increasingly popular design and can be used for many applications:

Exhibition halls.
Luxurious rooms.
Dancing halls.
Shopping center.
Walls.
Stairs and railings.
Office buildings.
Villas.
Opera houses.

Hotels.
Superior office buildings.
Business halls.
Ceilings.
Sports center.
Grand ballrooms.
Airport stations.
Museums.
Concert halls.

Woven wire mesh is used as exterior fencing beside a building.

WWD-18: Woven wire mesh as exterior fencing.

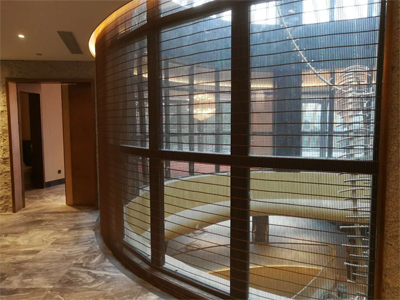

Woven wire mesh is hanging beside the window and wooden fence.

WWD-19: Woven wire mesh as interior partition.

Woven wire mesh as decorative wall, and beside the wall, there is a stairs.

WWD-20: Woven wire mesh as wall cladding.

Woven wire mesh in metallic color decorates ceiling in public area.

WWD-21: Woven wire mesh can be used as ceiling panel.

Woven wire mesh as protective fence and handrail on the footbridge.

WWD-22: Woven wire mesh as security fence.

Woven wire mesh decorates the whole stairs with a good drooping.

WWD-23: Woven wire mesh can be used to decorate stairs and railings.

Details about Woven wire mesh, it is woven by five strand wire rope and copper rods.

WWD-24: Woven wire mesh for outside decoration and security.

Woven wire mesh as exterior wall decoration covers the whole building.

WWD-25: Woven wire mesh as exterior wall coverings.

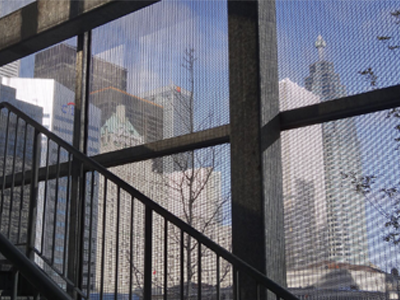

WWD-26: Woven wire mesh as building sunshade mesh.

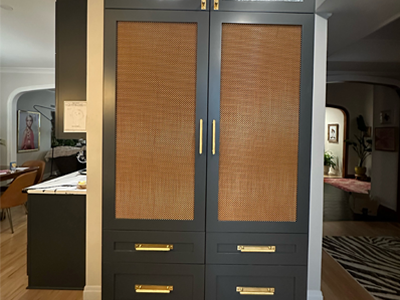

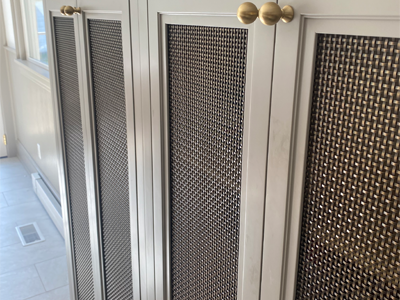

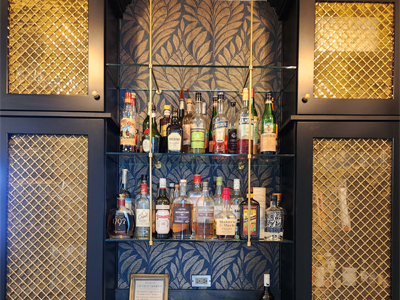

Woven wire mesh products are also very popular for cabinet doors. There are many styles and they are customizable. It is recommended to contact our email to get more cabinet door solutions! Here are some of the case photos we have done:
